FSI Review in CiCP PDF

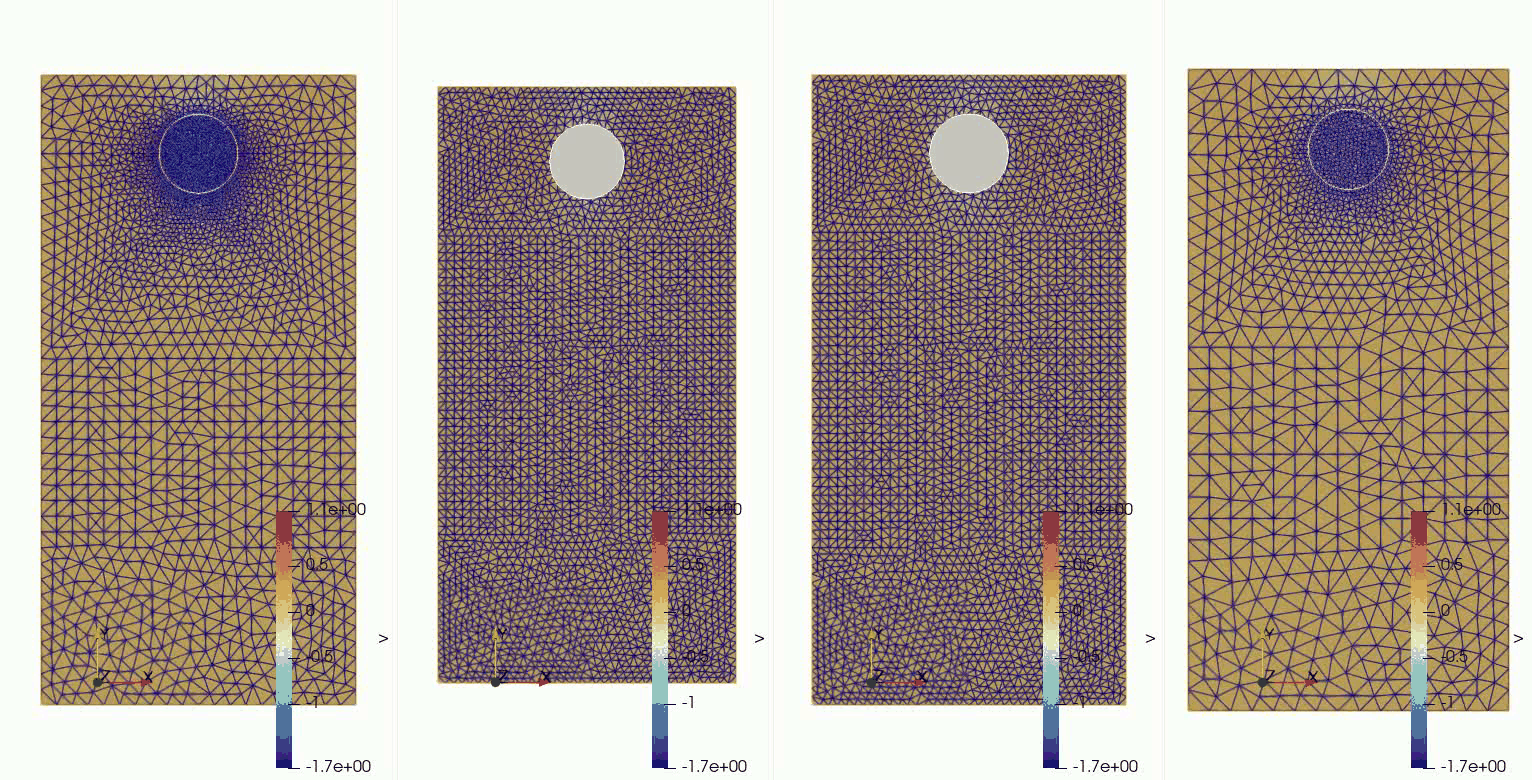

  1. Falling disc using one-velocity ALE with remeshing, one-velocity FDM with interpolation, FDM with a distributed Lagrange multiplier, and the phase-field method. FreeFEM fallingDiscALERemeshing.edp fallingDiscDLM.edp fallingDiscOneVelocityFDM.edp fallingDiscPhaseField.edp Comparison of falling-disc simulations

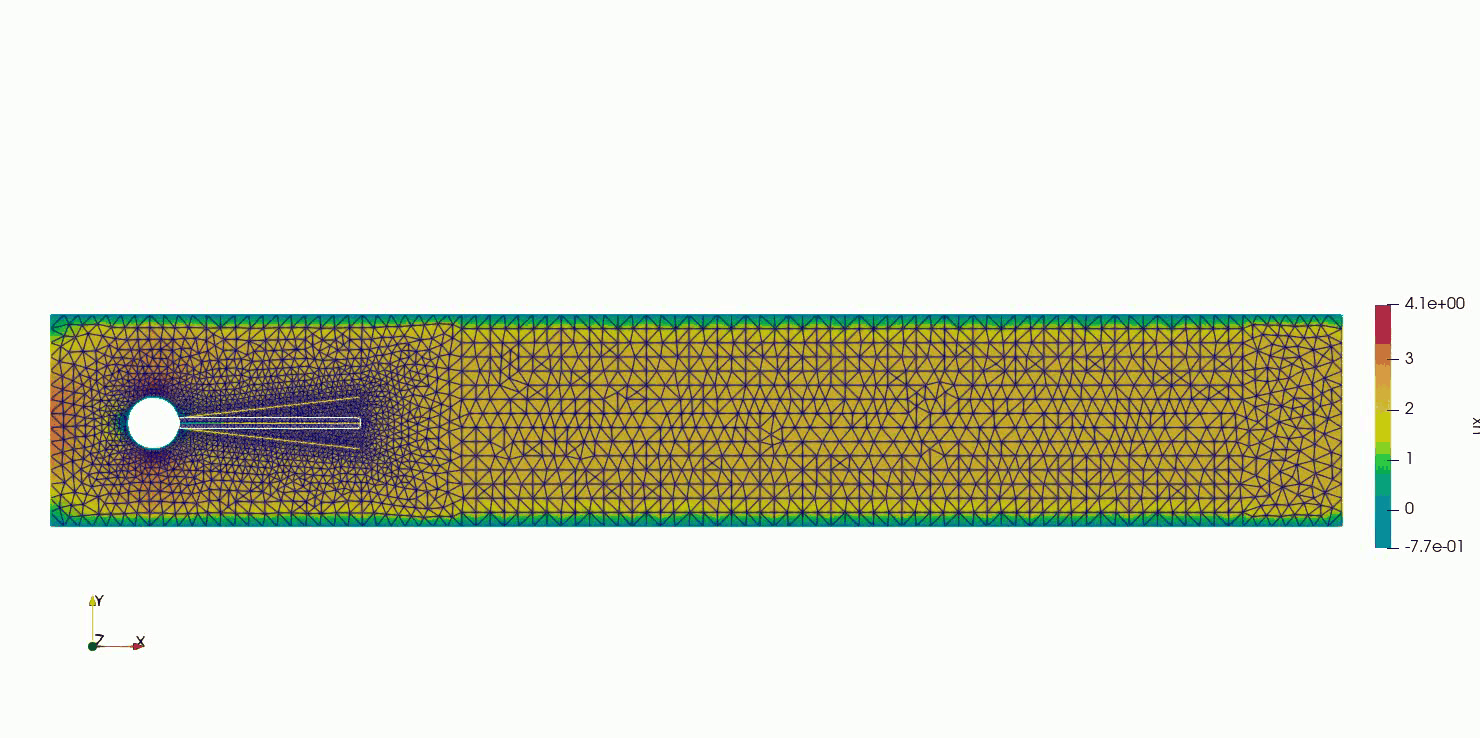

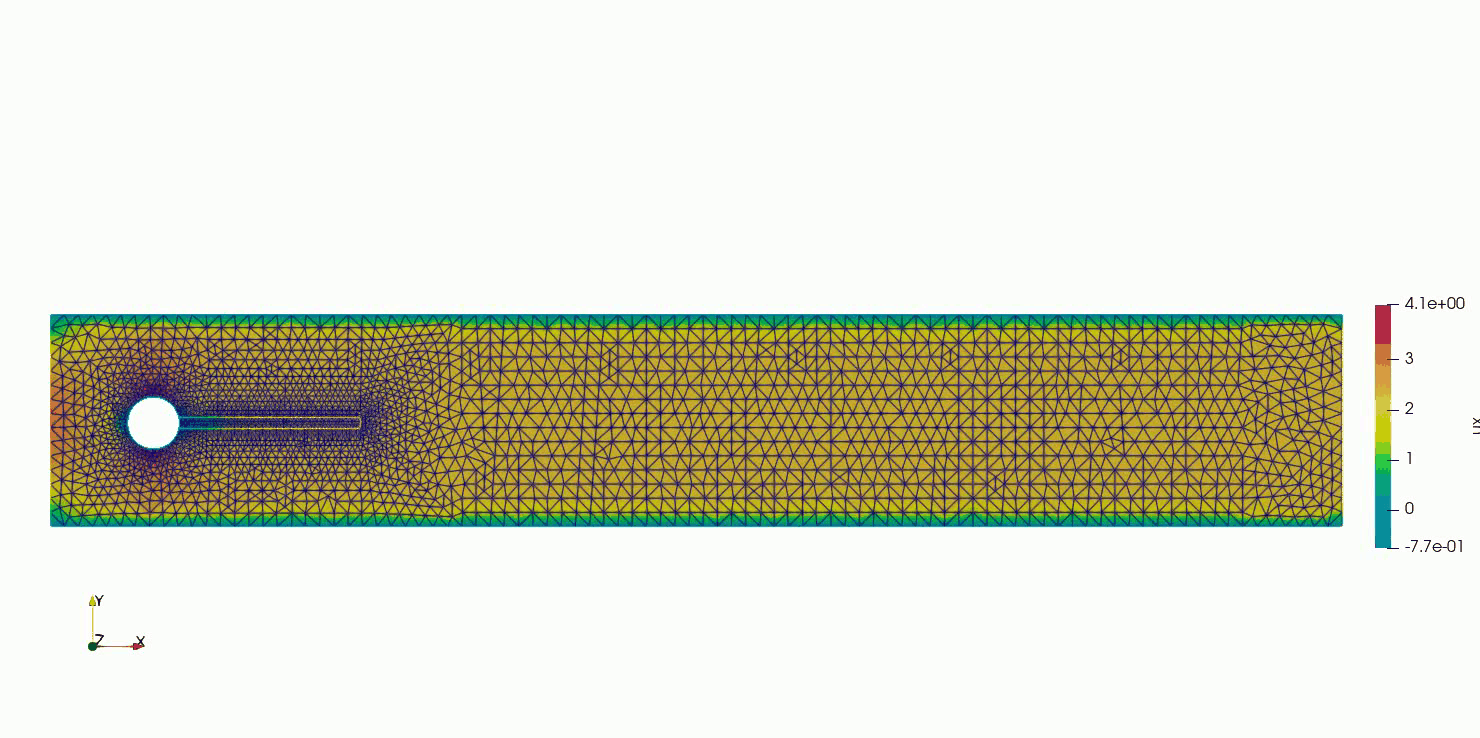

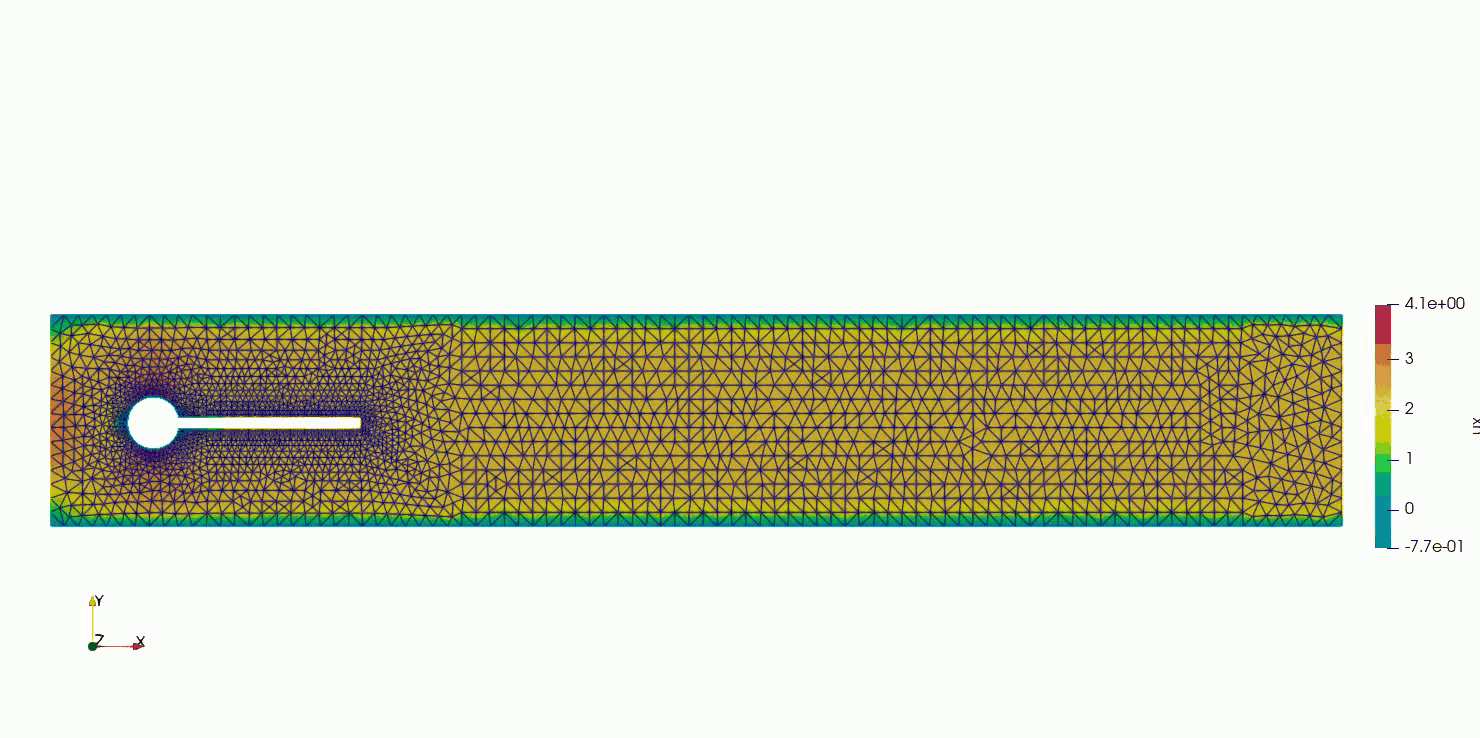

  2. Turek flag using one-velocity ALE, a Lagrange multiplier at the interface, and one-velocity FDM. FreeFEM flagALE.edp flagFDM.edp flagLM.edp Turek flag simulation using one-velocity ALE Turek flag simulation using an interface Lagrange multiplier Turek flag simulation using one-velocity FDM

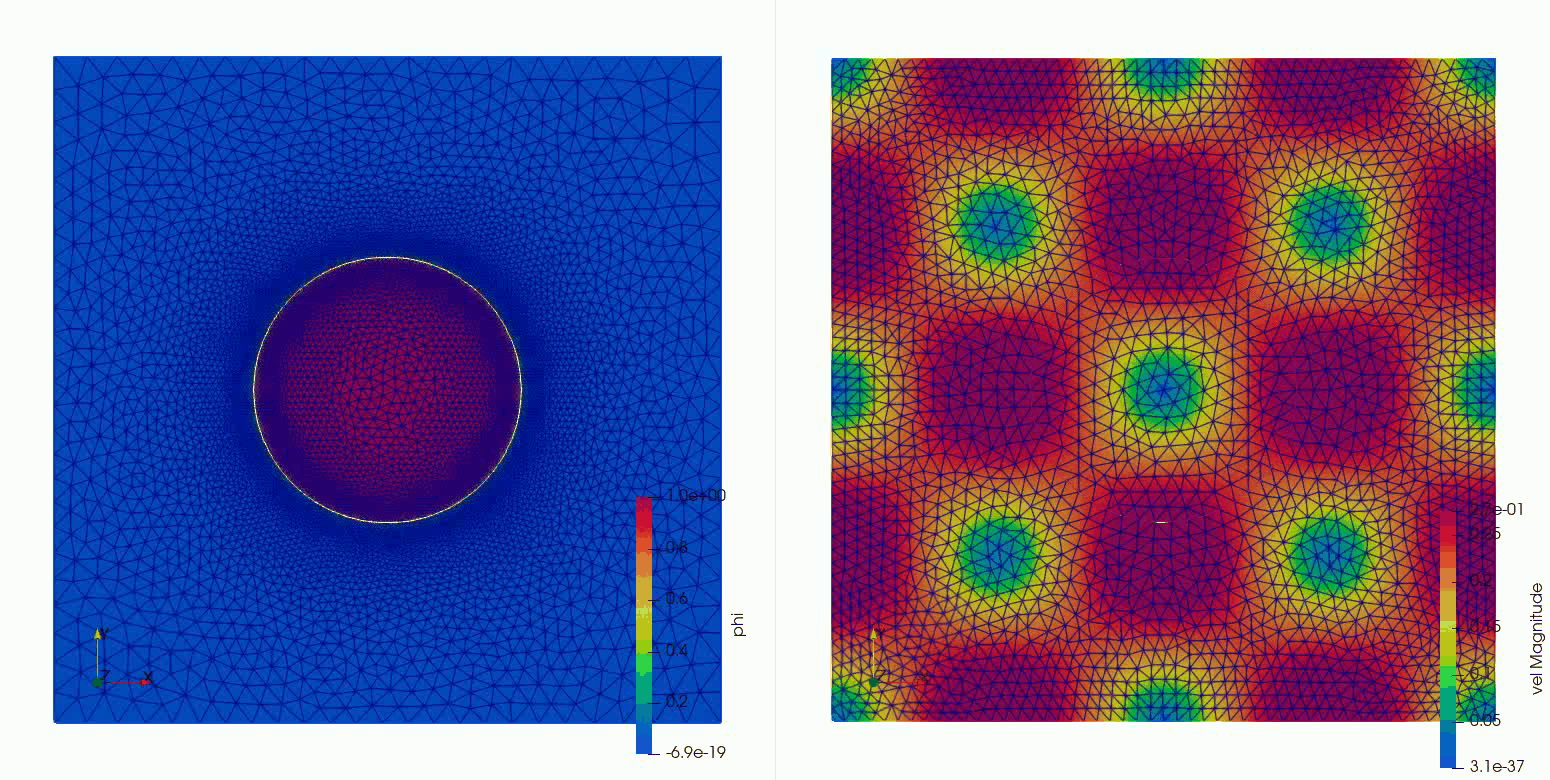

  3. Oscillating disc using one-velocity ALE, IFEM, one-velocity FDM, and the phase-field method, with $\rho^s=2$ and $\rho^f=1$. FreeFEM oscillatingDiscOneVelocityALE.edp oscillatingDiscIFEM.edp oscillatingDiscOneVelocityFDM.edp oscillatingDiscPhaseField.edp Comparison of oscillating-disc simulations
